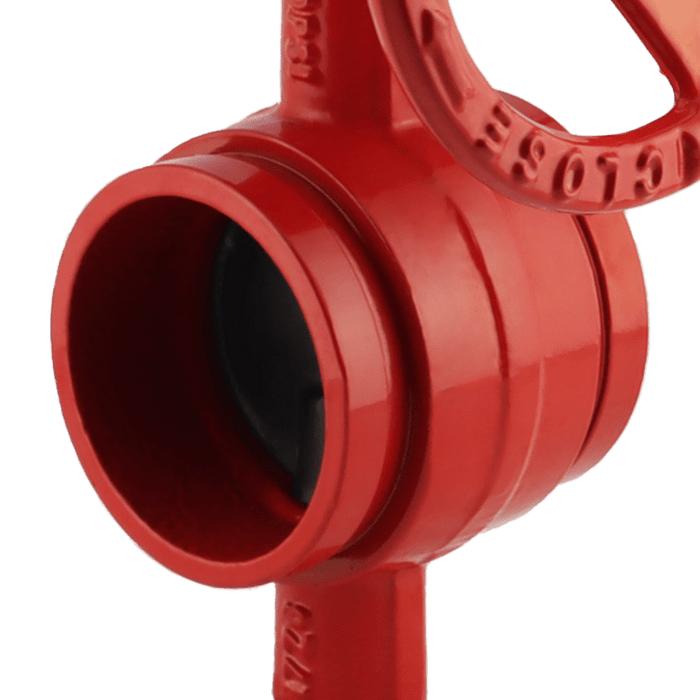

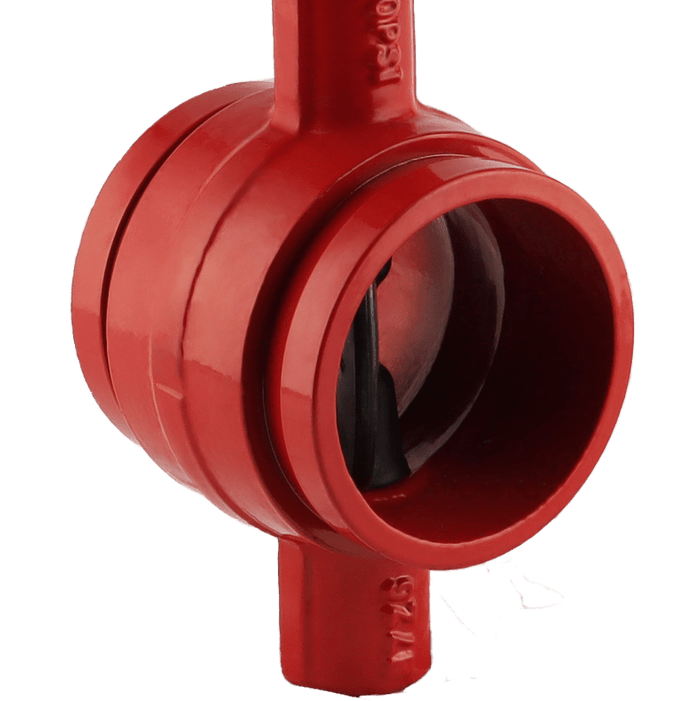

ARITA UL/FM Butterfly Valve 300PSI Groove Type

Weight:

SKU:

Collections: Fire Protection

Product type: Butterfly Valve

Vendor: Arita Fire Solution

Tags: Butterfly Valve, Fire Protection

Availability:

$152.02

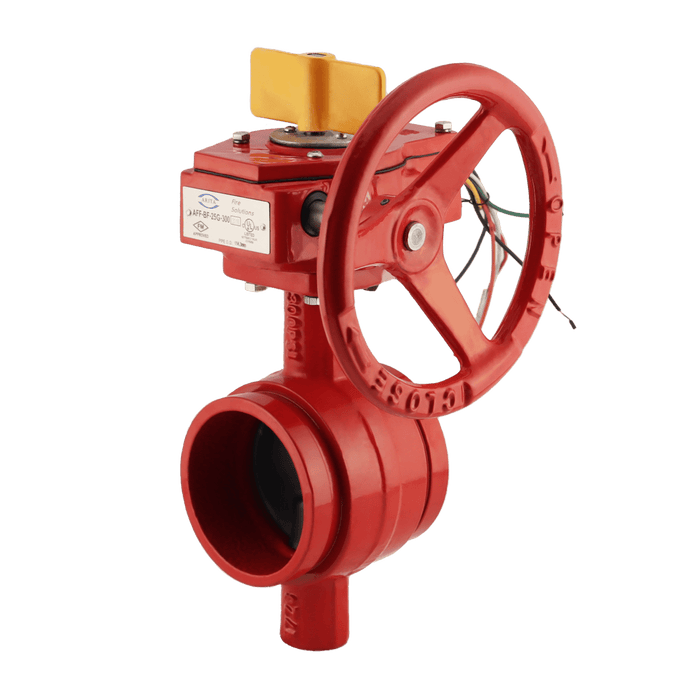

Fire Protection Resilient Seat Butterfly Valve Groove Type
Butterfly Valve with 2 sets of tamper switch is installed with one supervisory switch and one auxiliary switch with actuator suitable for outdoor and indoor use. Switches are installed with current monitor, Input Rating: 10A 250 VAC. Conduit and electrical connections to tamper switch must be in accordance to NFPA 13, 71 and 72.

Certification: UL/FM
Model: BF25 Series
Design Standard: MSS-SP 67
Size: 2-1/2"-12"
Rating: 300 PSI
Body: Ductile Iron
Body Coating: Epoxy Resin Fusion Bonded
Shaft: Stainless Steel 410
Disc: EPDM Coated Ductile Iron
Housing: Cast Iron
Bolt, Nut, Plug Washer, Pin: Galvanized Carbon Steel Surface Passivization
Connection: Groove Type

Resources

Submittal Sheet & Technical Drawing

Submittal Sheet Arita BF25-Butterfly Valve

Installation Manual

IOM for BF25 Butterfly Valve
